Workshop 4: Modal superposition of a jacket wind turbine

Workshop 4: Modal superposition of a jacket wind turbine#

IMPORTANT: Download the required external functions and put them in the same folder as this notebook
rdeke/ComModHOS_double

In this tutorial we will use the model defined earlier to apply the modal superposition technique in a simplified jacket wind turbine. We assume that the structure can be modelled as a space frame with structural elements that are subject to axial displacement and bending. Therefore, the equations of motion at a given element are given by:

\[ \rho A \frac{\partial^2 u (x,t)}{\partial t^2} - E A \frac{\partial^2 u(x,t)}{\partial x^2} = q_u(x) \]
\[ \rho A \frac{\partial^2 v (x,t)}{\partial t^2} + E I \frac{\partial^4 v(x,t)}{\partial x^4} = q_v(x) \]

The structure is schematically shown here:

Step 0: input parameters#

Let’s start by setting some parameters:

import numpy as np
import matplotlib.pyplot as plt
import scipy.linalg as scp

# Input parameters
# Nacelle
Mass_Nacelle = 5000             # [kg]

# Pile
m_Pile = 1000                   # [kg/m]
EI_Pile = 1e9                   # [N.m2]
EA_Pile = 1e8                   # [N]
H_Pile = 100                    # [m]

# Jacket
m_Jacket = 100                  # [kg/m]
EI_Jacket = 1e7                 # [N.m2]
EA_Jacket = 1e6                 # [N]
H_Jacket = 70                   # [m]
Base_Jacket = 30.23             # [m]
Top_Jacket = 16.13              # [m]

# Define load parameters
f0 = 2                          # [Hz]
A0 = 0.1                        # [m]
T0 = 20                         # [s]

# Define output time vector
dt = 0.01                       # [s]
T = np.arange(0, 5*T0, dt)
nT = len(T)

Step 1: discretize the domain#

As done in tutorial 4.3, we start by discretizing the domain. We will discretize the structure using 21 nodes.

Here we first define a matrix with the nodal coordinates.

# Define node coordinates
NodeCoord = ([-(Base_Jacket*4+Top_Jacket*0)/4/2,      -4*H_Jacket/4],  # Point 1
              [(Base_Jacket*4+Top_Jacket*0)/4/2,      -4*H_Jacket/4],  # Point 2
             [-(Base_Jacket*3+Top_Jacket*1)/4/2,      -3*H_Jacket/4],  # Point 3
              [(Base_Jacket*3+Top_Jacket*1)/4/2,      -3*H_Jacket/4],  # Point 4
             [-(Base_Jacket*2+Top_Jacket*2)/4/2,      -2*H_Jacket/4],  # Point 5
              [(Base_Jacket*2+Top_Jacket*2)/4/2,      -2*H_Jacket/4],  # Point 6
             [-(Base_Jacket*1+Top_Jacket*3)/4/2,      -1*H_Jacket/4],  # Point 7
              [(Base_Jacket*1+Top_Jacket*3)/4/2,      -1*H_Jacket/4],  # Point 8
             [-(Base_Jacket*0+Top_Jacket*4)/4/2,       0*H_Jacket/4],  # Point 9
                                             [0,       0*H_Jacket/4],  # Point 10
              [(Base_Jacket*0+Top_Jacket*4)/4/2,       0*H_Jacket/4],  # Point 11
                                             [0,                 10],  # Point 12
                                             [0,                 20],  # Point 13
                                             [0,                 30],  # Point 14
                                             [0,                 40],  # Point 15
                                             [0,                 50],  # Point 16
                                             [0,                 60],  # Point 17
                                             [0,                 70],  # Point 18
                                             [0,                 80],  # Point 19
                                             [0,                 90],  # Point 20
                                             [0,                100])  # Point 21
nNode = len(NodeCoord)

Once we have the node coordinates we proceed to define the elemental connectivities. Here, we will use the same array to assign the material properties to each element. Note that they are different depending on which part of the structure they belong to.

# Define elements (and their properties
#             NodeLeft    NodeRight          m         EA        EI
Elements = (         [1,            3,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [1,            4,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [2,            4,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [3,            4,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [3,            5,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [5,            4,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [4,            6,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [5,            6,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [5,            7,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [5,            8,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [6,            8,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [7,            8,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [7,            9,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [9,            8,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [8,           11,   m_Jacket,  EA_Jacket, EI_Jacket],
                     [9,           10,   m_Jacket,  EA_Jacket, EI_Jacket],
                    [10,           11,   m_Jacket,  EA_Jacket, EI_Jacket],
                    [10,           12,   m_Pile,    EA_Pile,   EI_Pile],
                    [12,           13,   m_Pile,    EA_Pile,   EI_Pile],
                    [13,           14,   m_Pile,    EA_Pile,   EI_Pile],
                    [14,           15,   m_Pile,    EA_Pile,   EI_Pile],
                    [15,           16,   m_Pile,    EA_Pile,   EI_Pile],
                    [16,           17,   m_Pile,    EA_Pile,   EI_Pile],
                    [17,           18,   m_Pile,    EA_Pile,   EI_Pile],
                    [18,           19,   m_Pile,    EA_Pile,   EI_Pile],
                    [19,           20,   m_Pile,    EA_Pile,   EI_Pile],
                    [20,           21,   m_Pile,    EA_Pile,   EI_Pile])
nElem = len(Elements)

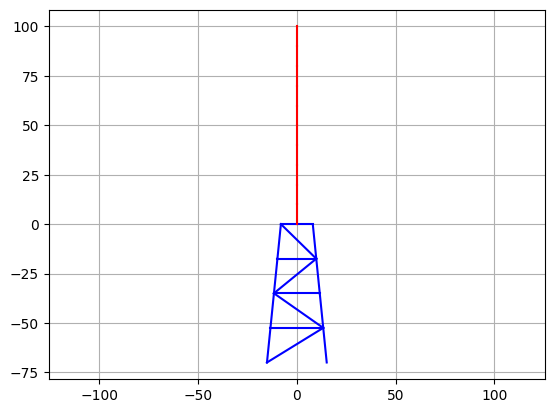

Let’s plot the structure to make sure that it looks like the model in the figure.

plt.figure()
for iElem in np.arange(0, nElem):
    NodeLeft = Elements[iElem][0]-1
    NodeRight = Elements[iElem][1]-1
    m = Elements[iElem][2]
    EA = Elements[iElem][3]
    EI = Elements[iElem][4]
    if m == m_Jacket and EA == EA_Jacket and EI == EI_Jacket:
        c = 'b'
    elif m == m_Pile and EA == EA_Pile and EI == EI_Pile:
        c = 'r'
    else:
        print("ERROR: unknown material. Check your inputs.")
        break
    plt.plot([NodeCoord[NodeLeft][0], NodeCoord[NodeRight][0]], [NodeCoord[NodeLeft][1], NodeCoord[NodeRight][1]], c=c)
plt.axis('equal')
plt.grid()
../../../_images/f0d64d8c3ce5f1a35fb8eaaf1648b1bcbbefd23c449d5a748ef1aea3bcee46a3.png

Step 2: define the shape functions#

Here we will use the exact same functions as in tutorial 4 and 5. Linear shape functions for the axial displacement and cubic shape functions for the deflection and rotations. Since we already know its expression and we already have the value of the elemental matrices, we skip this step in this tutorial.

Step 3: computation of the elemental matrices#

In the theory we have seen that the mass and stiffness elemental matrices for the space frame using linear and cubic shape functions are given by:

\[\begin{split} \boldsymbol{M} = \frac{mL}{420} \begin{bmatrix} 140 & 0 & 0 & 70 & 0 & 0 \\ 0 & 156 & 22L & 0 & 54 & -13L \\ 0 & 22L & 4L^2 & 0 & 13L & -3L^2 \\ 70 & 0 & 0 & 140 & 0 & 0 \\ 0 & 54 & 13L & 0 & 156 & -22L \\ 0 & -13L & -3L^2 & 0 & -22L & 4L^2 \end{bmatrix} \end{split}\]
\[\begin{split} \quad \boldsymbol{K} = \begin{bmatrix} \frac{EA}{L} & 0 & 0 & \frac{-EA}{L} & 0 & 0 \\ 0 & \frac{12EI}{L^3} & \frac{6EI}{L^2} & 0 & \frac{-12EI}{L^3} & \frac{6EI}{L^2} \\ 0 & \frac{6EI}{L^2} & \frac{4EI}{L} & 0 & \frac{-6EI}{L^2} & \frac{2EI}{L} \\ \frac{-EA}{L} & 0 & 0 & \frac{EA}{L} & 0 & 0 \\ 0 & \frac{-12EI}{L^3} & \frac{-6EI}{L^2} & 0 & \frac{12EI}{L^3} & \frac{-6EI}{L^2} \\ 0 & \frac{6EI}{L^2} & \frac{2EI}{L} & 0 & \frac{-6EI}{L^2} & \frac{4EI}{L} \end{bmatrix}\end{split}\]

These matrices are used directly when calling the BeamMatrices function within the assembly process.

Step 4: global assembly#

The last step is to compute the global matrices and the global forcing vector. We start by initializing the global matrices as 1-dimensional arrays.

nDof = 3*nNode              # 3 Degrees of freedom per node
K = np.zeros((nDof*nDof))
M = np.zeros((nDof*nDof))

Then we loop over elements and perform all the elemental operations.

from BeamMatrices import BeamMatricesJacket
for iElem in np.arange(0, nElem):
    # Get the nodes of the elements
    NodeLeft = Elements[iElem][0]-1
    NodeRight = Elements[iElem][1]-1

    # Get the degrees of freedom that correspond to each node
    Dofs_Left = 3*(NodeLeft) + np.arange(0, 3)
    Dofs_Right = 3*(NodeRight) + np.arange(0, 3)

    # Get the properties of the element
    m = Elements[iElem][2]
    EA = Elements[iElem][3]
    EI = Elements[iElem][4]

    # Calculate the matrices of the element
    Me, Ke = BeamMatricesJacket(m, EA, EI, ([NodeCoord[NodeLeft][0], NodeCoord[NodeLeft][1]], [NodeCoord[NodeRight][0], NodeCoord[NodeRight][1]]))

    # Assemble the matrices at the correct place
    nodes = np.append(Dofs_Left, Dofs_Right)
    for i in np.arange(0, 6):
        for j in np.arange(0, 6):
            ij = nodes[j] + nodes[i]*nDof
            M[ij] = M[ij] + Me[i, j]
            K[ij] = K[ij] + Ke[i, j]

# Reshape the global matrix from a 1-dimensional array to a 2-dimensional array
M = M.reshape((nDof, nDof))
K = K.reshape((nDof, nDof))

Now we have the global mass and stiffness matrices. However, in this example we have an additional point mass at the top corresponding to the nacelle. Then, we need to account for this mass adding its value at the corresponding DOFs, in this case the corresponding horizontal and vertical displacements associated to the top node.

nacelle_node = nNode
nacelle_dof_h = 3*(nacelle_node-1)
nacelle_dof_v = 3*(nacelle_node-1)+1
M[nacelle_dof_h, nacelle_dof_h] += Mass_Nacelle
M[nacelle_dof_v, nacelle_dof_v] += Mass_Nacelle

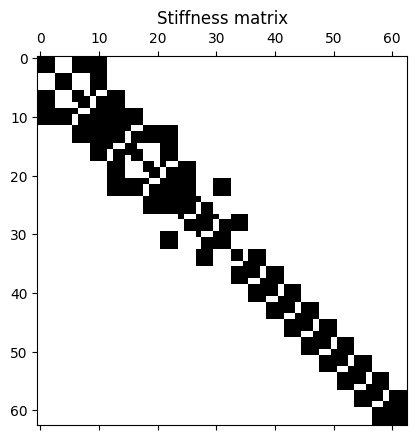

That completes the filling of the matrices. Let’s have a look at the matrices’ structure.

# Look at the matrix structure
plt.figure()
plt.spy(M)
plt.title("Mass matrix")
plt.figure()
plt.spy(K)
plt.title("Stiffness matrix");
../../../_images/b680a4f7c664b26f9c377ef280eeb2c43a14a7d959d7c5211355ce3b60a01a4f.png ../../../_images/3dcf26cfd54656b0ce7ee2a0d2a8dc0ad83575b5469b5c9c7b4d0598d85b4831.png

To apply the boundary conditions, we will remove the rows associated to the fixed DOFs and add the contribution to the right-hand-side. First, we obtain the free and fixed DOFs.

DofsP = np.arange(0, 6)          # prescribed DOFs
DofsF = np.arange(0, nDof)       # free DOFs
DofsF = np.delete(DofsF, DofsP)  # remove the fixed DOFs from the free DOFs array

# free & fixed array indices
fx = DofsF[:, np.newaxis]
fy = DofsF[np.newaxis, :]
bx = DofsP[:, np.newaxis]
by = DofsP[np.newaxis, :]

We can re-order the matrices and vectors in blocks, such that it’s easy to operate with the blocks corresponding with the fixed DOFs.

# Mass
M_FF = M[fx, fy]
M_FP = M[fx, by]
M_PF = M[bx, fy]
M_PP = M[bx, by]

# Stiffness
K_FF = K[fx, fy]
K_FP = K[fx, by]
K_PF = K[bx, fy]
K_PP = K[bx, by]

Step 5: modal analysis#

Here we divert from the tutorials in week 3.

Using the matrices associated to the free DOFs, we can perform a modal analysis to get more information on how the structure will deform and determine the natural frequencies.

\[ ( \boldsymbol{K}_{FF} - \omega^2 \boldsymbol{M}_{FF} ) \boldsymbol{\phi} = \boldsymbol{0} \]

To compute the natural frequencies and mode shapes we use the eig command, which is part of the NumPy package. For more information see: https://numpy.org/doc/stable/reference/generated/numpy.linalg.eig.html

mat = np.dot(np.linalg.inv(M_FF), K_FF)
w2, vr = np.linalg.eig(mat)
w = np.sqrt(w2.real)
f = w/2/np.pi
len(f)

57

We sort the frequencies and mode shapes in descending order:

idx = f.argsort()#[::-1]
f = f[idx]
vr_sorted = vr[:,idx]
ModalShape = np.zeros((nDof, len(f)))
ModalShape[6:, :] = vr_sorted

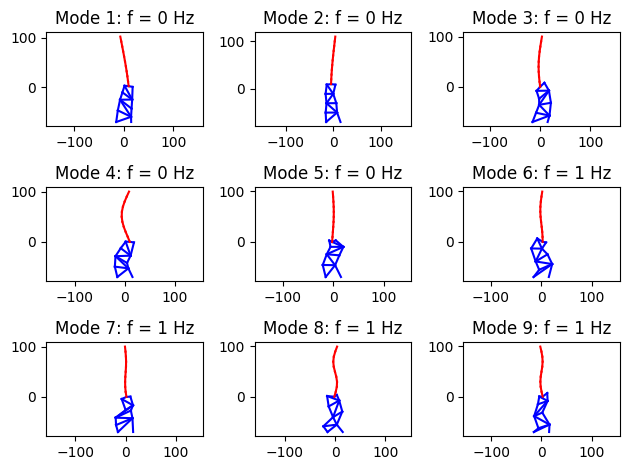

Let’s see what these modes look like. Here, we plot the first 9 modes. Note that the system will have 19 x 3 = 57 modes (as many as the discrete system DOFs).

nMode = 9
plt.figure()
nCol = int(np.round(np.sqrt(nMode)))
nRow = int(np.ceil(nMode/nCol))
for iMode in np.arange(1, nMode + 1):
    plt.subplot(nRow, nCol, iMode)
    Shape = ModalShape[:, iMode]

    # Scale the mode such that maximum deformation is 10
    MaxTranslationx = np.max(np.abs(Shape[0::3]))
    MaxTranslationy = np.max(np.abs(Shape[1::3]))
    Shape[0::3] = Shape[0::3]/MaxTranslationx*10
    Shape[1::3] = Shape[1::3]/MaxTranslationy*10

    # Get the deformed shape
    DisplacedNode = ([i[0] for i in NodeCoord] + Shape[0::3], [i[1] for i in NodeCoord] + Shape[1::3])
    for iElem in np.arange(0, nElem):
        NodeLeft = Elements[iElem][0]-1
        NodeRight = Elements[iElem][1]-1
        m = Elements[iElem][2]
        EA = Elements[iElem][3]
        EI = Elements[iElem][4]
        if m == m_Jacket and EA == EA_Jacket and EI == EI_Jacket:
            c = 'b'
        elif m == m_Pile and EA == EA_Pile and EI == EI_Pile:
            c = 'r'
        else:
            print("ERROR: unknown material. Check your inputs.")
            break
        plt.plot([DisplacedNode[0][NodeLeft], DisplacedNode[0][NodeRight]],
                    [DisplacedNode[1][NodeLeft], DisplacedNode[1][NodeRight]], c=c)
    plt.title("Mode "+str(iMode)+": f = "+str(round(f[iMode]))+" Hz")
    plt.axis('equal')

# automatically fix subplot spacing
plt.tight_layout()
../../../_images/55e36ea04c3b1bd54851d61c4a4a5a2149d09786b4638eae0f50e390b8e8f24f.png

Step 6: calculate modal quantities#

Now we want to compute the mass and stiffness coefficients that go on the diagonal of the respective mode, \(m_{ii}\) and \(k_{ii}\). Here, we also compute the contribution from the external force, inluding the effect of the boundary conditions, \(f_i^{eq}\).

\[\begin{split} \begin{bmatrix} m_{11} \ddot{\Gamma}_1 \\ m_{22} \ddot{\Gamma}_2 \\ \vdots \\ m_{NN} \ddot{\Gamma}_N \end{bmatrix} + \begin{bmatrix} k_{11} \Gamma_1 \\ k_{22} \Gamma_2 \\ \vdots \\ k_{NN} \Gamma_N \end{bmatrix} = \begin{bmatrix} f_1^{eq} \\ f_2^{eq} \\ \vdots \\ f_N^{eq} \end{bmatrix} \rightarrow \begin{cases} m_{11}\ddot{\Gamma}_1 + k_{11}\Gamma_1 = f_1^{eq} \\ m_{22}\ddot{\Gamma}_2 + k_{22}\Gamma_2 = f_2^{eq} \\ \qquad \qquad \vdots \\ m_{NN}\ddot{\Gamma}_N + k_{NN}\Gamma_N = f_N^{eq} \end{cases} \end{split}\]

Additionally, we also add damping into the system. In that case we use the modal damping ratio approach, with a damping ratio of 1% (\(\xi_j=0.01\)).

\[ c_{jj} = \xi_j c_{cr,j} = 2 \xi_j \sqrt{m_{jj}k_{jj}} \]

This will lead to a final system:

\[\begin{split} \begin{cases} m_{11}\ddot{\Gamma}_1 + c_{11}\dot{\Gamma}_1 + k_{11}\Gamma_1 = f_1^{eq} \\ m_{22}\ddot{\Gamma}_2 + c_{22}\dot{\Gamma}_2 + k_{22}\Gamma_2 = f_2^{eq} \\ \qquad \qquad \vdots \\ m_{NN}\ddot{\Gamma}_N + c_{NN}\dot{\Gamma}_N + k_{NN}\Gamma_N = f_N^{eq} \end{cases} \end{split}\]

Attention: we are calculating all the modes, but in general this shouldn’t be the case. You should only calculate the response for these modes that you want to consider. Here, we are calculating all modes, because we will compare the “reduced” and the “full” response. To consider only a few, you should replace nMode by the number of modes you wish to consider.

PHI = vr_sorted[:,0:nMode]

Mm = np.zeros(nMode)
Km = np.zeros(nMode)
Cm = np.zeros(nMode)
ModalDampRatio = 0.01
# Compute your "nMode" entries of the modal mass, stiffness and damping
for iMode in np.arange(0,nMode):
    print('Computing Mode: ',iMode+1) # Starts at 0 off course
    Mm[iMode] = PHI[:,iMode].T @ M_FF @ PHI[:,iMode]
    Km[iMode] = PHI[:,iMode].T @ K_FF @ PHI[:,iMode]
    Cm[iMode] = 2*ModalDampRatio*np.sqrt(Mm[iMode]*Km[iMode])
    print('Mm = ',Mm[iMode],', Km = ', Km[iMode],', Cm = ', Cm[iMode])

Computing Mode:  1
Mm =  9770.858374615917 , Km =  35.155971711622826 , Cm =  11.721843210285149
Computing Mode:  2
Mm =  5878.202857147078 , Km =  870.3127554379188 , Cm =  45.236599897104206
Computing Mode:  3
Mm =  8174.205181930304 , Km =  1943.0086801171649 , Cm =  79.70583823422044
Computing Mode:  4
Mm =  4775.304243275167 , Km =  9370.730498323164 , Cm =  133.78802504145224
Computing Mode:  5
Mm =  5303.990003284622 , Km =  24397.85071457471 , Cm =  227.51347765944314
Computing Mode:  6
Mm =  4412.846973208809 , Km =  31345.132214564914 , Cm =  235.22012823555107
Computing Mode:  7
Mm =  4040.488162793453 , Km =  47380.65684652576 , Cm =  276.7243994545952
Computing Mode:  8
Mm =  3147.261174569589 , Km =  73548.70340845389 , Cm =  304.2873501658332
Computing Mode:  9
Mm =  3778.9547524130057 , Km =  98975.85673442972 , Cm =  386.7946660339162

# Define the boundary conditions
def ub(t, T0):
    if t <= T0:
        return A0*np.sin(2*np.pi*f0*t)*np.array([1, 0, 0, 1, 0, 0])
    else:
        return np.array([0, 0, 0, 0, 0, 0])
    # Note the change at T0. What effect will this have?
def dub_dt2(t, T0):
    return -(2*np.pi*f0)**2*ub(t, T0)

def F(t):
    return -PHI.T @ ( K_FP @ ub(t,T0) + M_FP @ dub_dt2(t,T0) )

Problem: Solve the equation and plot the results

Hint: Which matrices are needed to get the modal acceleration in the ODE solver?

# Solve the resulting ODE:

# Show the result on the original coordinates

The solution can be found here.

Contents
